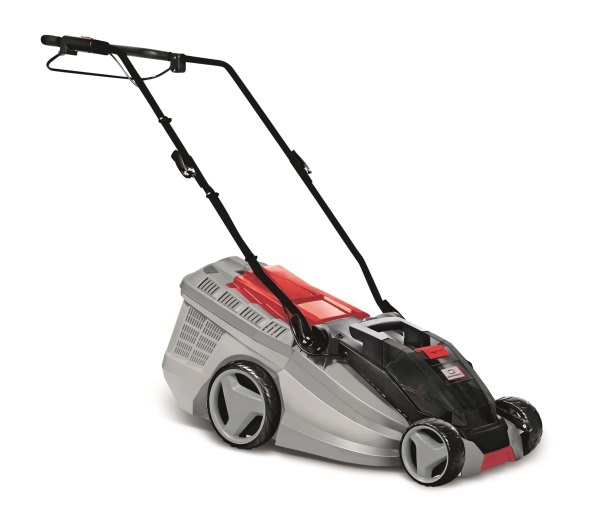

Informations Logistiques :
- Code EAN : 3505391024774
-
Longueur mm : 970
-
Largeur mm : 510
-
Hauteur mm : 510
-
Volume en m³ :
-
Poids brut (kg) : 24
-
Poids net (kg) : 19.5

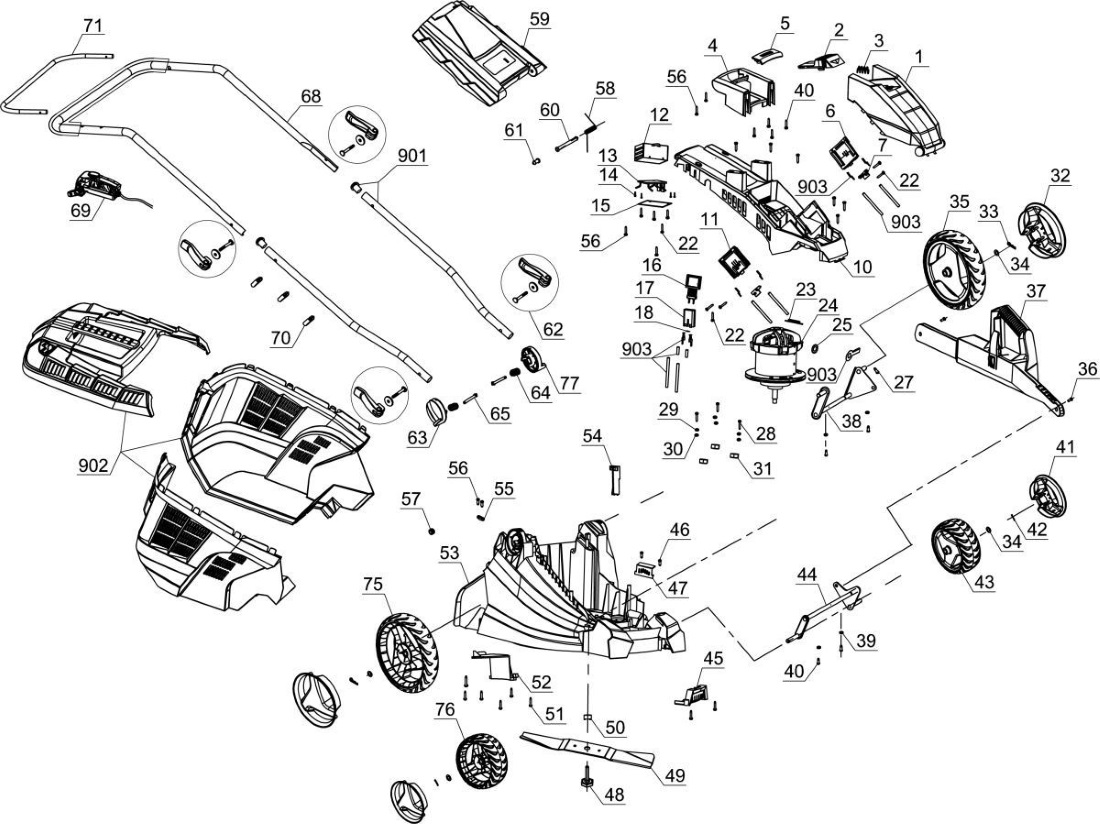

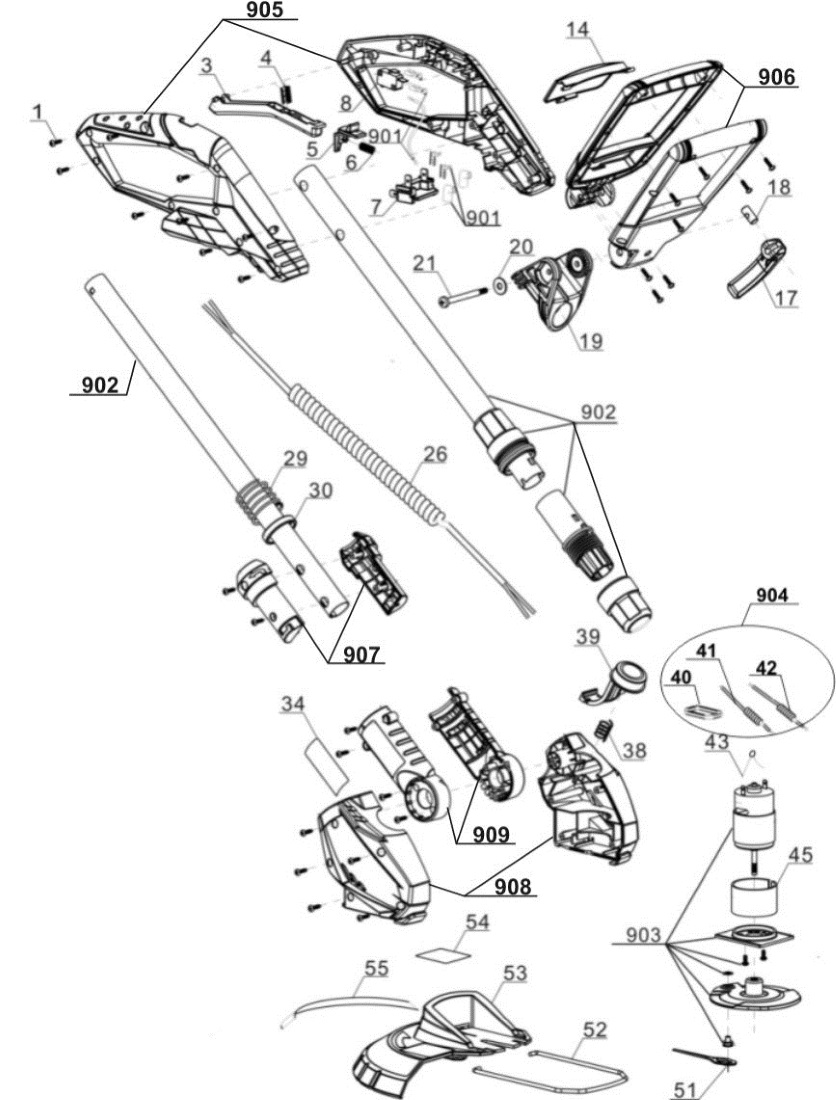

Position
Référence
Désignation
53
341115901053
protége lame (RAL7040)
903
341117103903
motor HRS-755S assy.
Position
Référence
Désignation
1
341305301001
transparent cover
3
341306102003
press spring
5
341305301005
handle cover (Black)
10
341305301010
motor top cover (Black)
12
341306102012
fixing plate
13
341306402013
function plate
15
341306102015
fuction plate cover
18
341306102018
key plate cover
23
341306102023
filter band cpl.
29
341306102029
spring pad 5
32
341305301032
enjoliveur de roue avant (RAL 7040)
34
341306102034
flat washer 10
35
341306102035
roue arrière gauche
36
341306102036
connect pin
37
341306102037
connect bar assy.
38
341306102038
rear wheel shaft assy.
40
341306102040
bolt ST4x20
41
341305301041
enjolioveur de roue avant (RAL 7040)
43
341306102043
roue avant gauche cpl.
44
341306102044
front wheel shaft assy.
45
341305301045
front handle (RAL 3020)
46
341306102046
bolt ST4x16
47
341306102047
fixing plate
48
341306102048
Vis fixation lame
50
341306402050
entraxe lame
51
341306102051
bolt ST4x16
52
341306102052
nether cover
53
341305301053
main housing (RAL 7040)
54
341306102054
grass plate
56
341306102056
bolt ST4x12
57
341306102057
cable sheath (small)
58
341306102058
torsion spring for rear cover
59
341305301059
rear cover (RAL 3020)
60
341306102060
shaft pin for rear cover
61
341306102061
pin for torsion spring
62
341306102062
push handle assy.
63
341306102063
clamp for handle bar right
64
341306102064
adjust press spring for handle
65
341306102065
square bolt
68
341305301068
upper handle with sheath (Blac
69
341306102069
Commande complete
70
341306102070
cord sheath
71
341306102071
controlling handle
75
341306102075
roue arrère cpl.
76
341306102076
roue avant droite cpl.
77
341306102077
clamp for handle bar left
800
341306102800
height handle
801
341306102801
mulching kit
802
341306402802
locking block
803
341306402803
Screw to fix the socket
901
341305301901
lower handle bar cpl (Black)
902
341305301902
grass case assy. (RAL 7040)
